Camere implantabile (Port-a-cath)

654,00 lei (TVA inclus)

In Stock
Add to Wishlist
Add to Wishlist

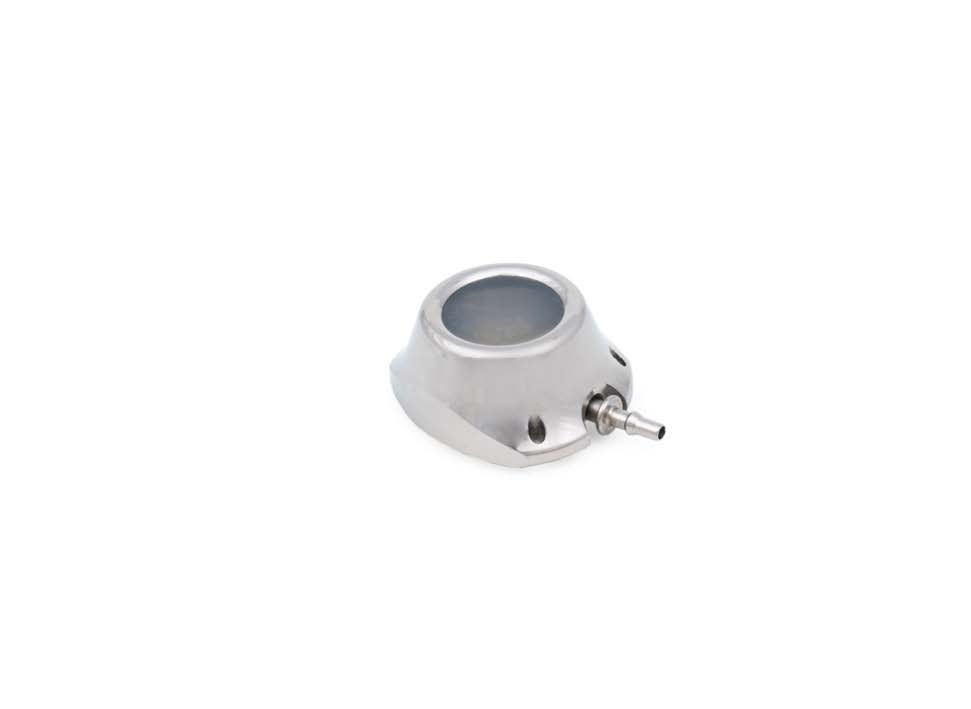

The chamber of the Healthport system is the component intended to be underskin implanted; it can be easily accessed with a non coring needle for infusing the drug.

The Healthport system offers a vast choice of chambers, with different shapes, dimensions and materials; hence the user can choose the model that best suits the requirement’s of the patient and the therapy.

Features:

  • Small chamber dimensions
  • Circular (“dome”) shape chamber for maximum stability of the chamber (low risk of “flipping”)
  • Convex external bottom to improve chamber stability during puncturing
  • Very high needle stability due to pressure exerted on self-sealing septum by titanium components.

Specs:

Chamber material: titanium
Self-sealing septum material: silicone
Weight: 7,5 g
Chamber internal volume: 0,53 ml
Maximum punctures number: 2000 with 22G Huber needle, 1000 with 19G Huber needle

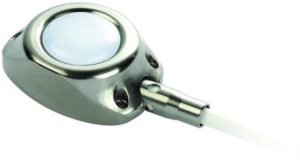

Features:

  • Small chamber dimensions
  • Wedge-shaped chamber to easy insertion into underskin poket
  • Convex external bottom to improve chamber stability during puncturing
  • Large self-sealing septum surface for easy finding during skin palpation and to increase the number of punctures allowed
  • Very high needle stability due to pressure exerted on self-sealing septum by titanium components.

Specs:

Chamber material: titanium
Self-sealing septum material: silicone
Weight: 9 g
Chamber internal volume: 0,53 ml
Maximum punctures number: 2000 with 22G Huber needle, 1000 with 19G Huber needle



Features:

  • Extra small chamber dimensions
  • Wedge-shaped chamber to easy insertion into underskin poket
  • Large self-sealing septum surface (in comparison with overall dimensions)
  • Low invasivity
  • Suitable for special patients with “cosmetic” needs or paediatric patients

Specs:

Chamber material: titanium
Self-sealing septum material: silicone
Weight: 5 g
Chamber internal volume: 0,20 ml
Maximum punctures number: 1500 with 22G Huber needle

Features:

  • Chamber specifically designed to be used for High-flow Injections of contrast media
  • Large self-sealing septum facilitates location during skin palpation and reduces risks of puncture concentration
  • Transparent and radiopaque elastomeric connector allows rapid, safe and reversible connection of the catheter
  • Entire line (extenstion+huber needle) tested by Independent Lab

Max Flow Rate = 5ml/s with max Pressure 300PSI, Max Viscosity 12cP and Healthport Power Injection Set

Specs:

Chamber material: titanium
Self-sealing septum material: silicone
Diameter available for puncture: 13 mm
Maximum number of punctures: 2000 with 22 GA Huber needle, 1000 with 19 GA Huber needle
Shape and dimensions: wedged – base 25 mm x 26,9 mm
Height: 13 mm
Weight: 14,9 g
Internal volume: 0,82 ml



Features:

  • Low profile plastic chamber
  • Titanium internal chamber to avoid bottom floor damages due to needle tip and avoid interactions between plastic and drugs
  • Large self-sealing septum surface for easy finding during skin palpation and to increase the number of punctures allowed
  • Suitable for patients with high subcutaneous fat pad
  • The transparent polyurethane connector allows a rapid, safe and reversible connection of the catheter

Specs:

Internal chamber material and outlet tube: titanium
External chamber body: polysulfone
Connector: polyurethane
Self-sealing septum material: silicone
Weight: 5,9 g
Chamber internal volume: 0,36 ml
Maximum punctures number: 2000 with 22G Huber needle, 1000 with 19G Huber needle



Features:

  • Wedge-shaped chamber to easy insertion into underskin poket
  • Titanium internal chamber to avoid bottom floor damages due to needle tip and avoid interactions between plastic and drugs
  • Large self-sealing septum surface for easy finding during skin palpation and to increase the number of punctures allowed
  • Suitable for patients with high subcutaneous fat pad

Specs:

Internal chamber material and outlet tube: titanium
External chamber body and connector: polysulfone
Self-sealing septum material: silicone
Weight: 9 g
Chamber internal volume: 0,53 ml
Maximum punctures number: 2000 with 22G Huber needle, 1000 with 19G Huber needle



Features:

  • Double chamber with different outlet tubes
  • Suitable for a wide number of different fluids to infuse (i.e. chemotherapeutics, antibiotics, nutritionals)
  • Different chamber diameter and height allow easy and safe identification of each chamber during skin palpation
  • Suitable to infuse substances that are not compatible before diluting in the blood stream (crystallization risk)
  • Large self-sealing septum surface

Specs:

Internal chamber material and outlet tube: titanium
External chamber body and connector: polysulfone
Self-sealing septum material: silicone
Weight: 18 g
Smaller chamber internal volume: 0,53 ml
Bigger chamber internal volume: 0,65 ml
Maximum punctures number: 2000 with 22G Huber needle
1000 with 19G Huber needle

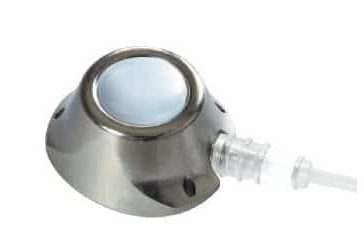

Features:

  • Low profile plastic chamber
  • Titanium internal chamber to avoid bottom floor damages due to needle tip and avoid interactions between plastic and drugs
  • Large self-sealing septum surface for easy finding during skin palpation and to increase the number of punctures allowed
  • Suitable for patients with high subcutaneous fat pad
  • The transparent polyurethane connector allows a rapid, safe and reversible connection of the catheter
  • Easy identification of a “Power” chamber under X-rays thanks to the “P” visible in the bottom of the chamber

Max Flow Rate = 5ml/s with max Pressure 300PSI, Max Viscosity 12cP and Healthport Power Injection Set

Specs:

Internal chamber material and outlet tube: titanium
External chamber body: polysulfone
Connector: polyurethane
Self-sealing septum material: silicone
Weight: 5,9 g
Chamber internal volume: 0,36 ml
Maximum punctures number: 2000 with 22G Huber needle, 1000 with 19G Huber needle
